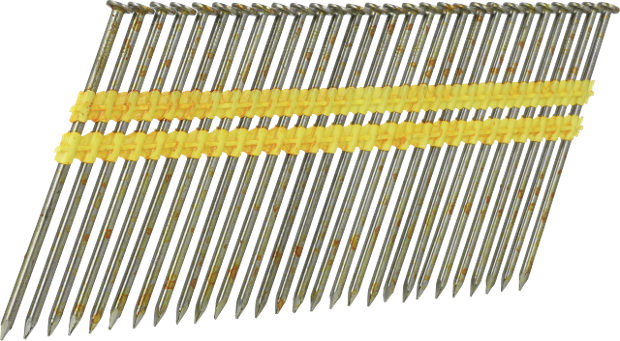

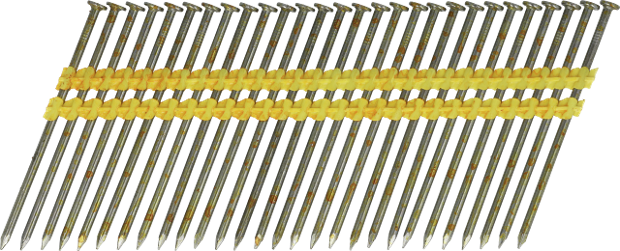

HD smooth stripnail 3,1x90mm

tap image to zoom

Description

3,1mm smooth stripnail, bright basic, Sencoted

Read more Read less

Applications

Framing, Trusses, Wood construction

Read more Read less

Norm

Harmonized standard EN 14592:2008+A1:2012

Request information

Specifications

Identifiers

Article number: HD59APBSR
GTIN: 8715274161235

Technical specifications

Collation angle: 21 °
Collation type: Plastic collated
Wire material: Carbon steel standard tensile

Fastener specifications

Finish: Bright basic standard tensile
Coating: Sencoted
Application environment: Indoor
Type of nail: FRH stripnails
Nail head type: Full round head
Nail shank type: Smooth shank
Point type: Diamond
Pointangle: 40 °
Nail diameter: 3.1 mm
Amount fasteners on strip/coil: 29 - 31
Nail length: 90.0 mm

CeSpecifications

Characteristic head pull through parameter: 30.1 N/mm²
CE fastener type: Round cross-section plain shank nail
DOP No: HD59APBSR
Coating type: Coating type 3
Head cross sectional area: 30.0 mm
Characteristic yield moment: 2570.0 Nmm
Characteristic tensile strength: 633.0 N/mm²
Harmonized standard: EN 14592:2008+A1:2012
Characteristic withdrawal parameter: 3.1 N/mm²

Non-technical specifications

Package quantity: 2000

Logistical specifications

Net weight: 10.91 kg

Downloads

HD59APBSR_en_CommercialProductSheet_1.8_1752329484801 PDF 1 Mb
DOP VS-CPR-201305-S028 PDF 124 Kb
HD59APBSR_en_DeclarationOfPerformanceDoP_1.0eu_1748513068319 PDF 61 Kb
