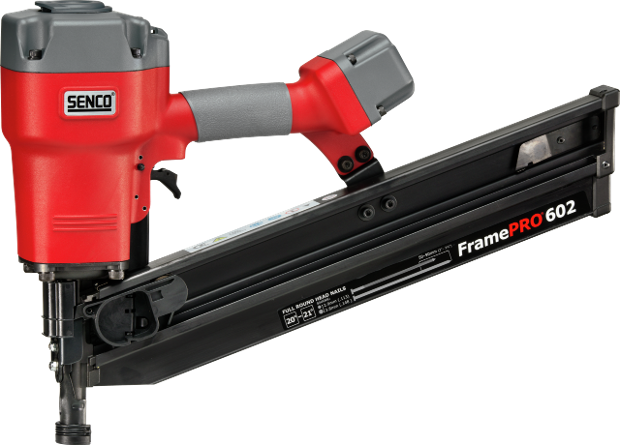

FramePro602, FRH framing nailer, restrictive

tap image to zoom

Description

This full round head nailer provides all important feautures such as a toenail safety, rugged aluminium casting, power to drive a wide range of full round head nails, even common nails with an in-line magazine for superior balance and line of sight.

Applications

Framing, Subfloor, Sheathing, Decking, Siding, Fencing, Pallets and crates

Request information Request information

Specifications

Identifiers

Serie
Pro
Article number
1E2002N
GTIN
0741474305085
Type
FramePro602

Technical specifications

Collation angle
21 °
Oil free
no
Operating temperature
-18 - 49 °C
Collation type
Plastic collated
Firing mode
Restrictive
Magazine capacity
60
Air inlet size
3/8" female
Air consumption at 60 shots/minute
283.2 l/m
Operating pressure
4.8 - 8.3 bar
Sound pressure level
97.0 Lpa
Sound power level
100.0 Lwa
Vibration level
3.5 m/s2

Fastener specifications

Type of nail
FRH stripnails
Head diameter
6.6 - 7.65 mm
Smooth shank type
Smooth shank
Smooth shank nail length
50 - 90 mm
Smooth shank nail diameter
2.87 - 3.8 mm
Ring shank type
Ring shank
Ring shank nail length
50 - 75 mm
Ring shank nail diameter
2.87 - 2.87 mm
Screw shank type
Screw shank
Screw shank nail length
50 - 75 mm
Screw shank nail diameter
2.87 - 3.1 mm
Barbed shank type
Barbed shank
Barbed shank nail length
50 - 90 mm
Barbed shank nail diameter
2.87 - 3.1 mm

Non-technical specifications

Warranty
1 year
Dimensions (DxWxH)
106 x 508 x 337 mm
Includes case
yes

Logistical specifications

Net weight
3.81 kg
