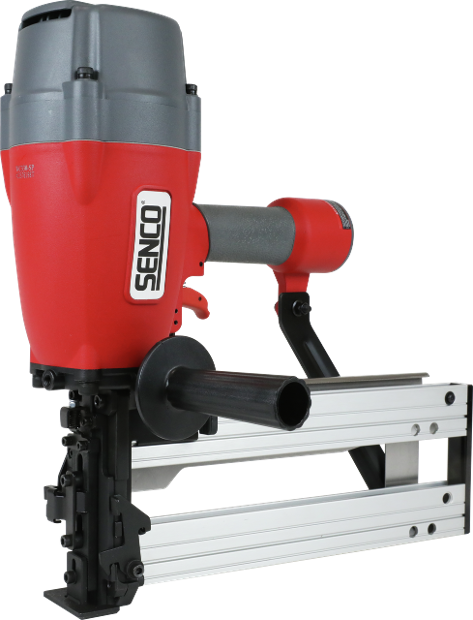

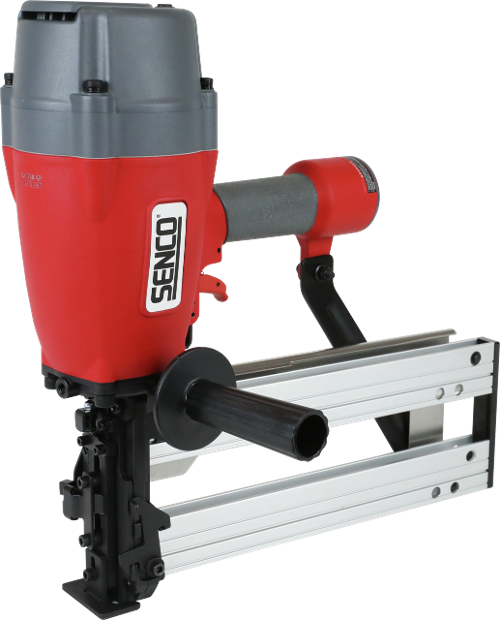

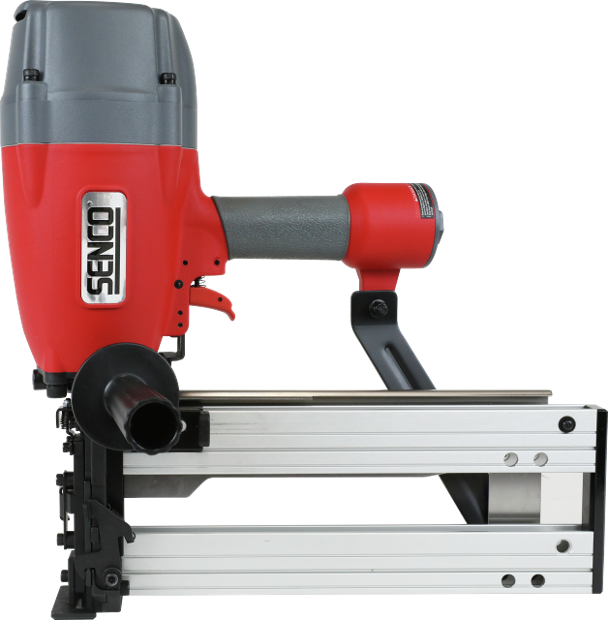

WC330-SP, wc stapler, restrictive

tap image to zoom

Description

The SENCO WC330-SP is the most powerfull 130mm stapler in it's class. Able to provide fixing for a variety of applications such as insulation fixing in timber frame construction.

Read more Read less

Applications

Insulation boards, Sheathing, Insulation sheating

Read more Read less

Request information

Specifications

Identifiers

Serie: Pro
Article number: 6P2001N
GTIN: 0741474120855
Type: WC330SP

Technical specifications

Collation angle: 0 °
Oil free: no
Operating temperature: -18 - 49 °C
Collation type: Glue collated
Firing mode: Restrictive
Fastener driving power: 81 J
Magazine capacity: 120
Air inlet size: 3/8" female
Air consumption at 60 shots/minute: 175.6 l/m
Operating pressure: 5.5 - 8.3 bar
Sound pressure level: 90.0 Lpa
Sound power level: 103.0 Lwa
Vibration level: 2.86 m/s2
Gauge: 14

Fastener specifications

Staple type: Wide crown staple
Staple length: 63 - 130 mm
Staple serie: SP staple

Non-technical specifications

Warranty: 1 year
Dimensions (DxWxH): 133 x 400 x 397 mm
Includes case: no

Logistical specifications

Net weight: 5.85 kg

Downloads

Manual SENCO Staplers PDF 31 Mb
Part chart SENCO wide crown stapler WC330-SP PDF 2 Mb
6P2001N_en_CommercialProductSheet_1.4_1748267454843 PDF 2 Mb
