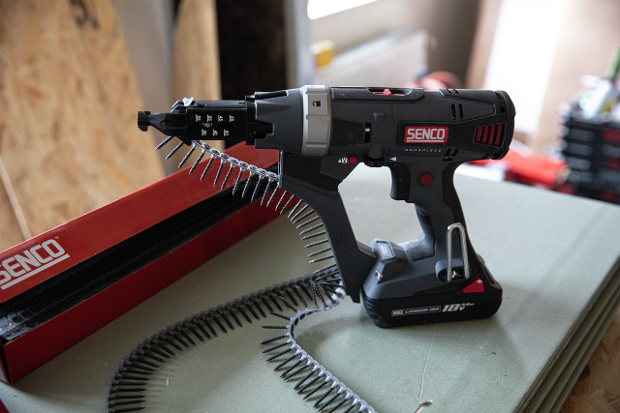

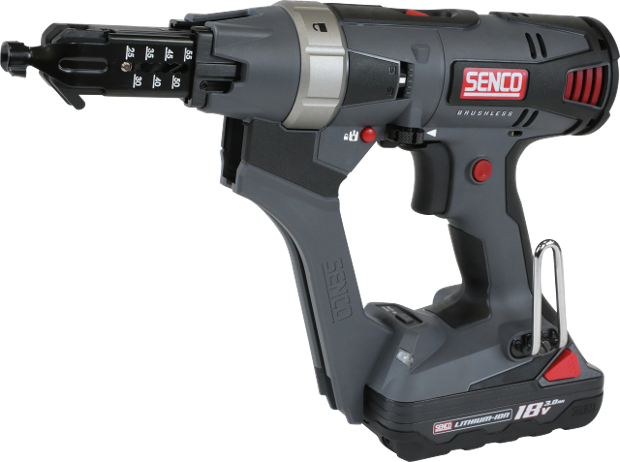

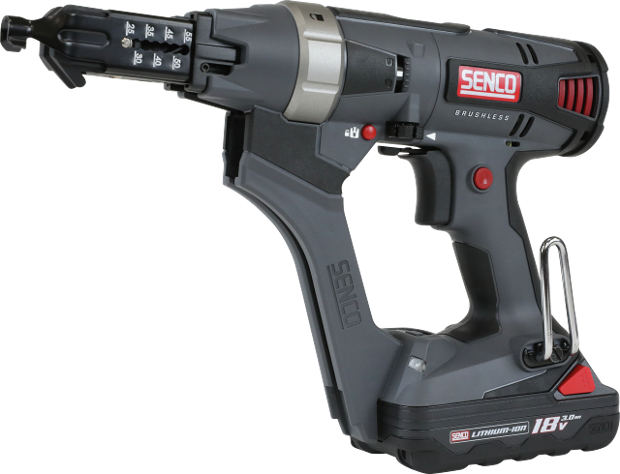

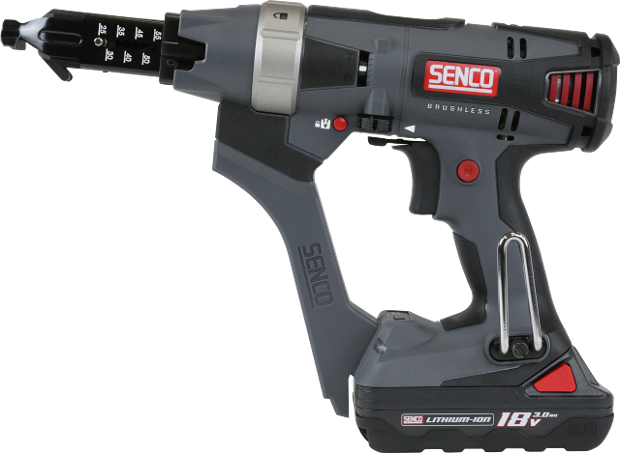

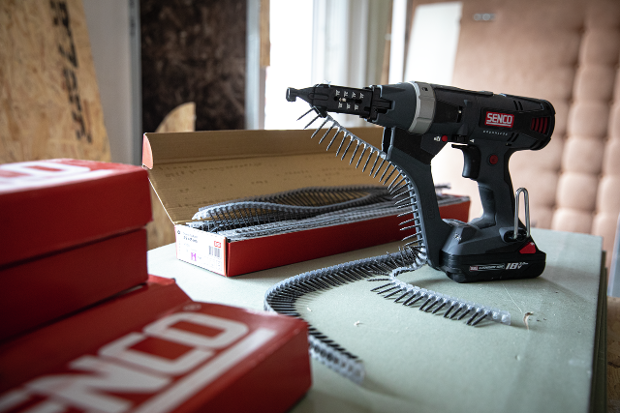

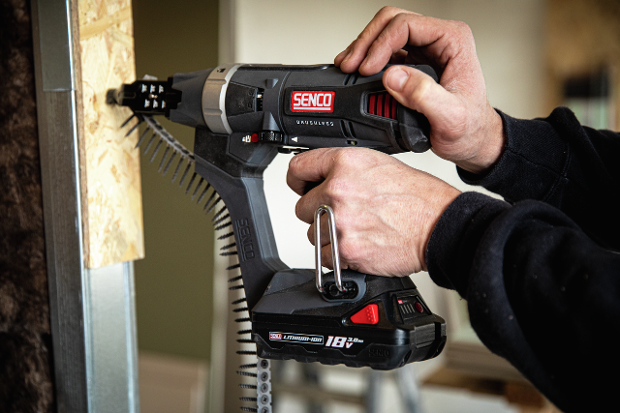

DS525-18V EU High Speed 55mm
tap image to zoom
Description
Powered by an efficient brushless motor, this high speed auto-feed screwdriver, a quick release feed system with our patented corner fit technology. The DS525 also features feed on return - the next screw is aligned with the bit for better line of sight and easier, more accurate screw placement.
Applications

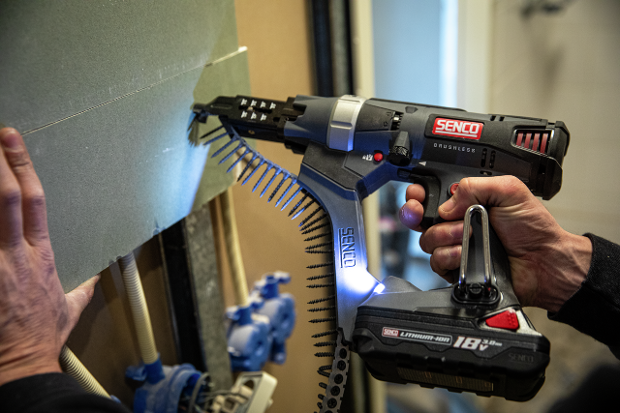

Insulation boards, Exterior hard fiber to wood or light steel, Drywall to heavy steel, Drywall to light steel, Exterior gypsum fiber board to wood or light steel
Specifications
Identifiers
- Serie
- DuraSpin
- Article number
- 10A2001N
- GTIN
- 8715274245225
- Type
- DS525-18V
Technical specifications
- Bit length
- 174 mm
- Frequency
- 50 Hz
- Electrical plug type
- Continental
- Battery type
- Li-Ion
- Battery voltage
- 18 V
- Battery ampere rating
- 3.0 Ah
- Battery power
- 54.0 W
- Recharge time 80%
- 15 min
- Recharge time 100%
- 45 min
- Shots per charge
- 2500
- Number of batteries
- 2
- Torque
- 5 Nm
- Sound pressure level
- 63.5 Lpa
- Sound power level
- 74.5 Lwa
- Vibration level
- 1.1 m/s2
- Voltage
- 230 V
- Rotations per minute
- 5000 RPM
Fastener specifications
- Screw length
- 25 - 55 mm
- Screw diameter
- 3.5 - 5.5 mm
Non-technical specifications
- Warranty
- 5 years
- Dimensions (DxWxH)
- 85 x 372 x 243 mm

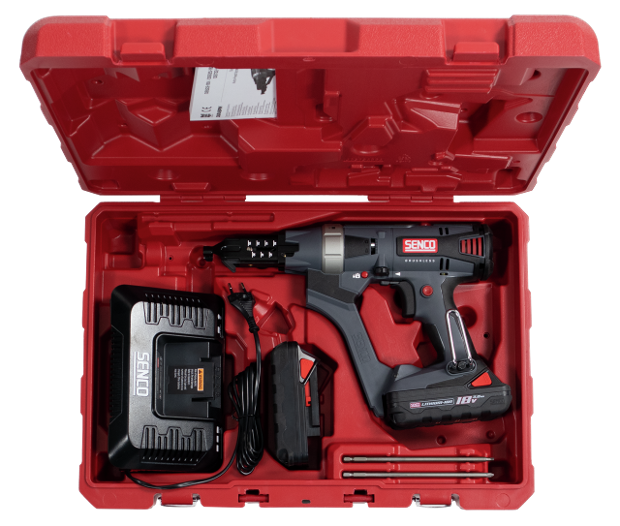

- Includes case
- yes
Logistical specifications
- Net weight
- 2.48 kg
Related Fasteners
Downloads
- Manual SENCO DuraSpin 2.5 PDF 16 Mb
- Part chart SENCO DuraSpin DS525 PDF 836 Kb
- 10A2001N_en_CommercialProductSheet_1.6_1752211419286 PDF 1 Mb
