MC60-34, metal connector nailer

tap image to zoom

Description

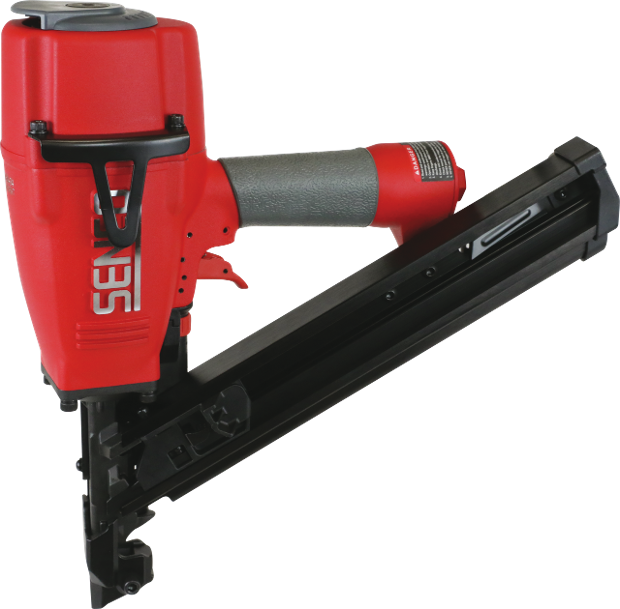

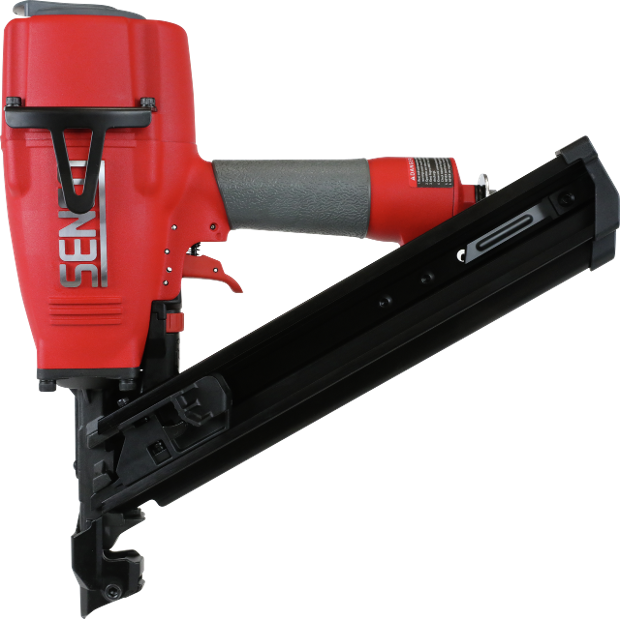

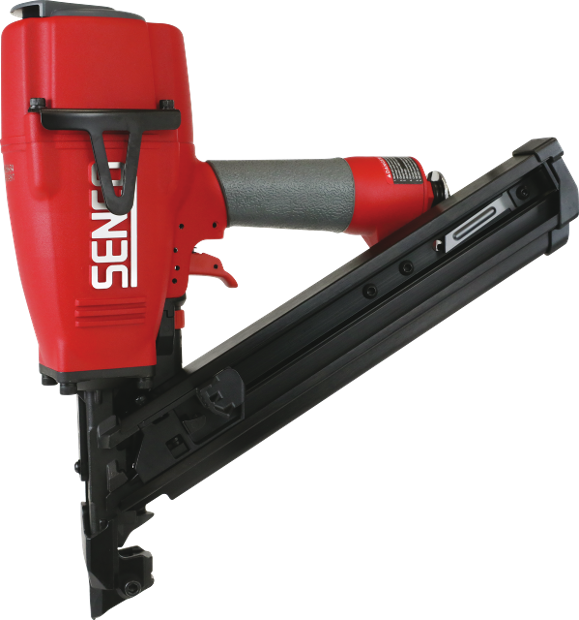

The MC60-34 is a pneumatic compact metal connector nailer that can drive nails ranging in length between 38 and 64mm. Its innovative nosepiece design provides accurate nail placement into pre-punched metal connector holes. This ProSerie metal connector nailer is constructed with durable, high-quality materials while still being lightweighted and ergonomically balanced. The tool has the power to drive into the toughest substrates, including engineered lumber.

Applications

Joist hangers, Rafter joints, Anchors, Framing

Request information Request information

Specifications

Identifiers

Serie
Pro
Article number
6K2001N
GTIN
0741474115912
Type
MC60-34

Technical specifications

Collation angle
34 °
Oil free
no
Operating temperature
-18 - 49 °C
Collation type
Plastic collated
Alternative collation type
Paper collated
Firing mode
Restrictive
Magazine capacity
20
Air inlet size
3/8" female
Air consumption at 60 shots/minute
117.5 l/m
Operating pressure
4.8 - 8.3 bar
Sound pressure level
90.0 Lpa
Sound power level
103.0 Lwa
Vibration level
3.56 m/s2

Fastener specifications

Type of nail
Metal connector stripnails
Ring shank type
Ring shank
Ring shank nail length
38 - 64 mm
Ring shank nail diameter
3.3 - 4.3 mm

Non-technical specifications

Warranty
1 year
Dimensions (DxWxH)
110 x 350 x 359 mm
Includes case
no

Logistical specifications

Net weight
2.68 kg
