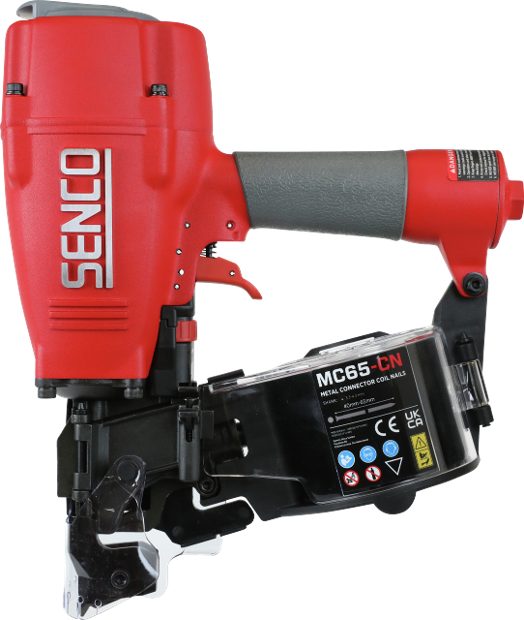

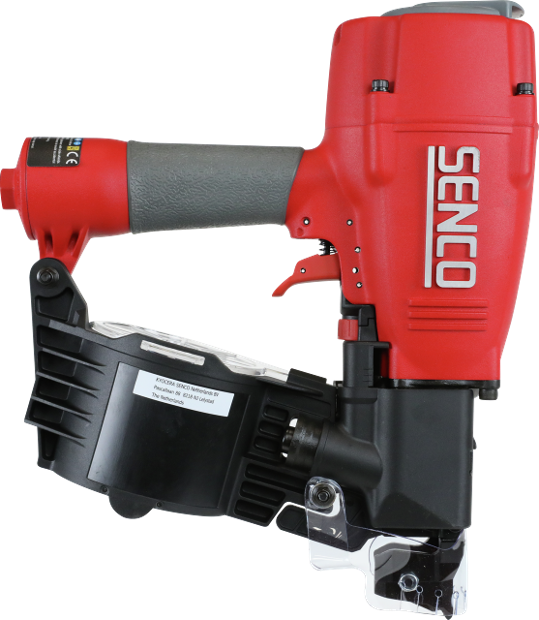

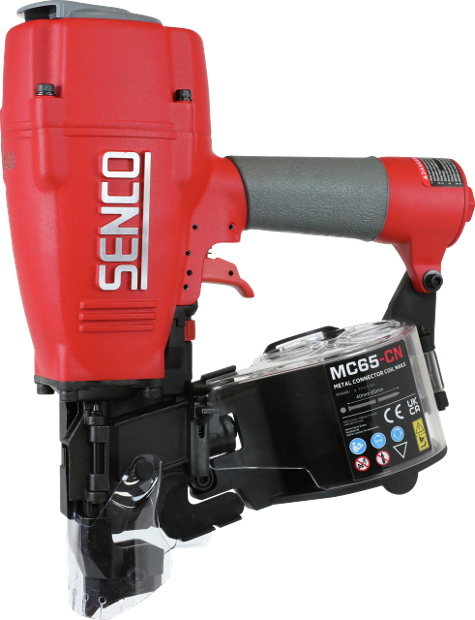

MC65-CN metal connector Coil nailer
tap image to zoom
Description
The MC65-CN is a pneumatic compact metal connector nailer that can drive nails ranging in length between 38 and 65mm. Its innovative nosepiece design provides accurate nail placement into pre-punched metal connector holes. This ProSerie metal connector nailer is constructed with durable, high-quality materials while still being lightweighted and ergonomically balanced. The tool has the power to drive into the toughest substrates, including engineered lumber.
Applications
Anchors, Joist hangers
Specifications
Identifiers
- Serie
- Pro
- Article number
- 16VS2001N
- GTIN
- 8715274254425
- Type
- MC65-CN
Technical specifications
- Collation angle
- 16 °
- Oil free
- no
- Operating temperature
- -7 - 49 °C
- Collation type
- Plastic collated
- Firing mode
- Single shot
- Fastener driving power
- 75 J
- Magazine capacity
- 100
- Air inlet size
- 3/8" female
- Air consumption at 60 shots/minute
- 96.0 l/m
- Operating pressure
- 5 - 8 bar
- Sound pressure level
- 93.7 Lpa
- Sound power level
- 101.0 Lwa
Fastener specifications
- Type of nail
- Coilnails
- Ring shank type
- Ring shank
- Ring shank nail length
- 40 - 65 mm
- Ring shank nail diameter
- 3.3 - 4.3 mm
Non-technical specifications
- Warranty
- 1 year
- Package contents
- Manual, Parts Chart
- Dimensions (DxWxH)
- 100 x 278 x 317 mm
- Includes case
- no
Logistical specifications
- Gross weight
- 3.375 kg
- Net weight
- 2.3 kg
Related Fasteners
Downloads
- Manual SENCO Coilnailers PDF 21 Mb
- MC65-CN Part Chart PDF 1 Mb
- 16VS2001N_en_CommercialProductSheet_1.6_1752755416796 PDF 2 Mb
