LS1XP, brad nailer 1,2mm (AZ)
tap image to zoom
Description

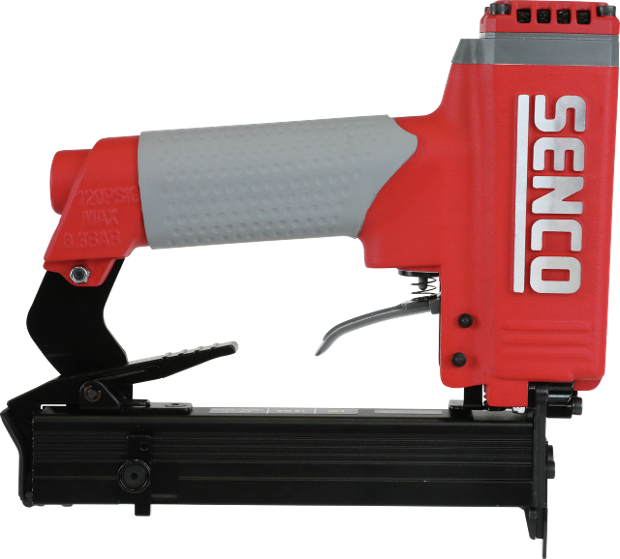

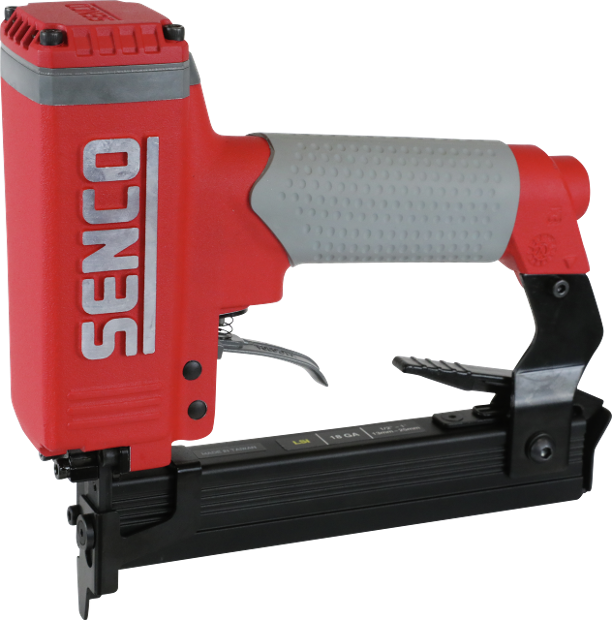

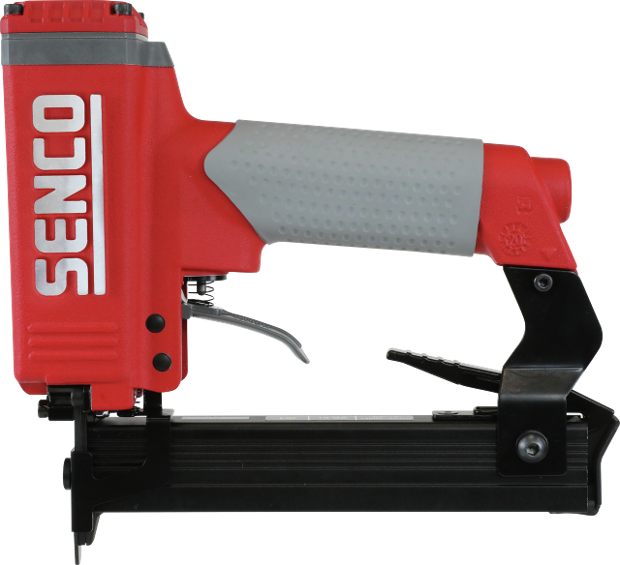

The LS1XP Brad Nailer drives headless 18 gauge AZ brads up to 25mm in length. The tapered nose of the tool enables the operator to accurately position the fastener even in those hard-to-reach areas..
Applications
Cabinets, Furnitures, Moldings, Doors and windows, Drawers, Decorative trim, Finish and trim, Picture frames
Specifications
Identifiers
- Serie
- XtremePro
- Article number
- 8N2001N
- GTIN
- 0741474138072
- Type
- LS1XP
Technical specifications
- Collation angle
- 0 °
- Oil free
- yes
- Operating temperature
- -18 - 49 °C
- Collation type
- Glue collated
- Firing mode
- Trigger fire
- Magazine capacity
- 100
- Shots / second
- 5
- Air inlet size
- 1/4" female
- Air consumption at 60 shots/minute
- 23.1 l/m
- Operating pressure
- 4.8 - 8.3 bar
- Sound pressure level
- 83.0 Lpa
- Sound power level
- 90.0 Lwa
- Vibration level
- <2.5 m/s2
- Gauge
- 18
Fastener specifications
- Type of nail
- Brads
- Smooth shank type
- Smooth shank
- Smooth shank nail length
- 13 - 25 mm
- Smooth shank nail diameter
- 1.2 - 1.2 mm
Non-technical specifications
- Warranty
- 5 years
- Dimensions (DxWxH)
- 51 x 229 x 210 mm
- Includes case
- no
Logistical specifications
- Net weight
- 1.3 kg
