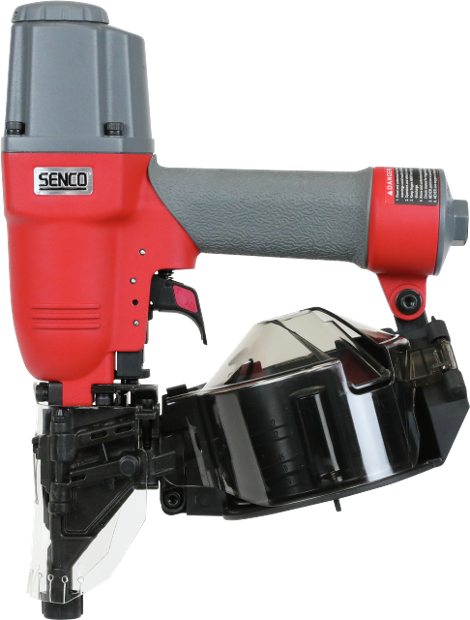

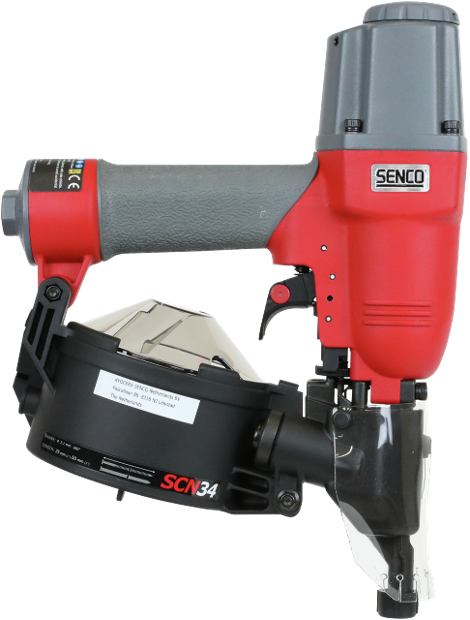

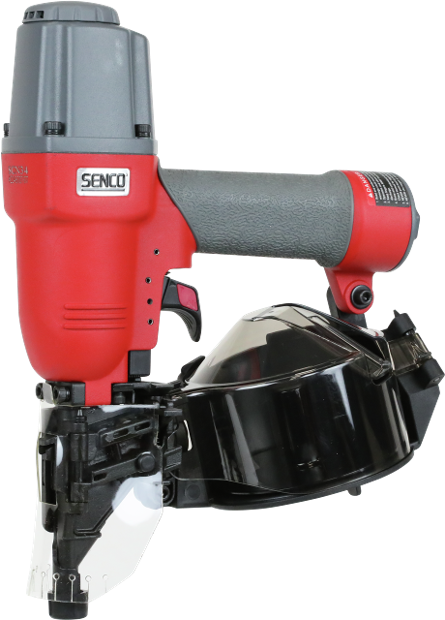

SCN34, coilnailer, dual

tap image to zoom

Description

The SCN34 lightweight and compact design allows it to be highly manoeuvrable and driving coil nails from 25mm to 50mm.

Read more Read less

Applications

Pallets and crates, Siding, Wood construction

Read more Read less

Request information

Specifications

Identifiers

Serie: Pro
Article number: SCN34
GTIN: 8715274012261
Type: SCN34

Technical specifications

Collation angle: 16 °
Wounding type: Conical
Alternative wounding type: Flat
Oil free: no
Operating temperature: -18 - 49 °C
Collation type: Wire collated
Alternative collation type: Plastic collated 9mm
Firing mode: Selectable
Magazine capacity: 400
Shots / second: 4
Air inlet size: 3/8" female
Air consumption at 60 shots/minute: 43.8 l/m
Operating pressure: 4.8 - 8.3 bar
Sound pressure level: 83.1 Lpa
Sound power level: 94.6 Lwa
Vibration level: 3.81 m/s2

Fastener specifications

Type of nail: Coilnails
Smooth shank type: Smooth shank
Smooth shank nail length: 25 - 50 mm
Smooth shank nail diameter: 1.6 - 2.1 mm
Ring shank type: Ring shank
Ring shank nail length: 25 - 50 mm
Ring shank nail diameter: 1.6 - 1.6 mm
Pitch min: 6.0 mm
Pitch max: 6.0 mm
Max outerdiamer coil: 100 mm

Non-technical specifications

Warranty: 1 year
Dimensions (DxWxH): 108 x 260 x 302 mm

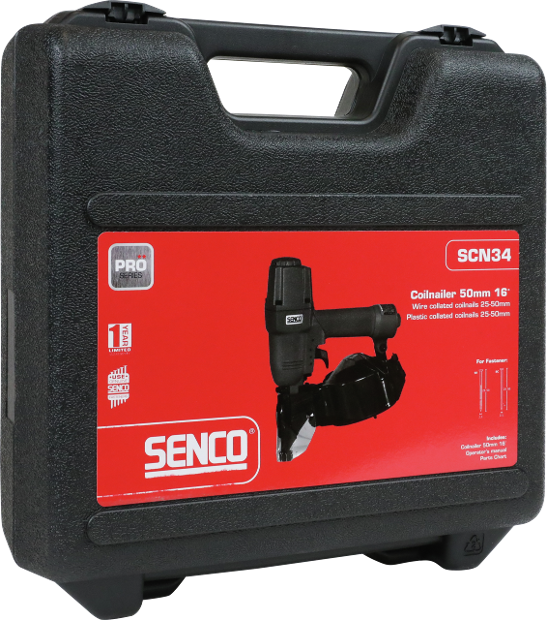

Includes case: yes

Logistical specifications

Net weight: 1.55 kg

Downloads

Manual SENCO Coilnailers PDF 21 Mb
Part chart SENCO coilnailer SCN34 PDF 2 Mb
SCN34_en_CommercialProductSheet_1.5_1752238465888 PDF 2 Mb
