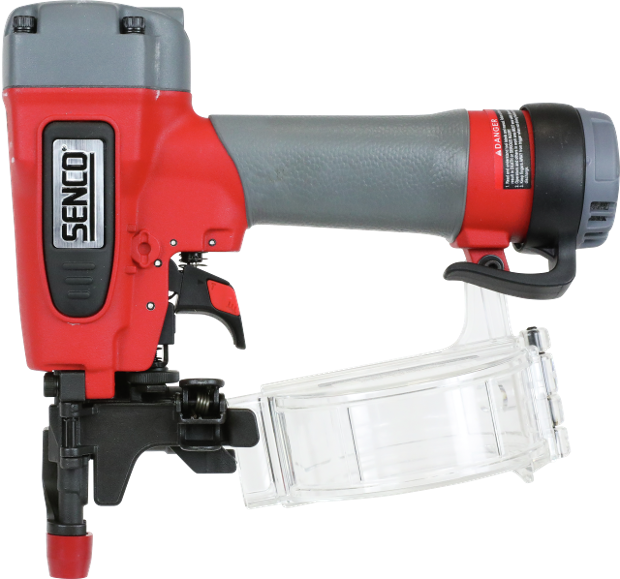

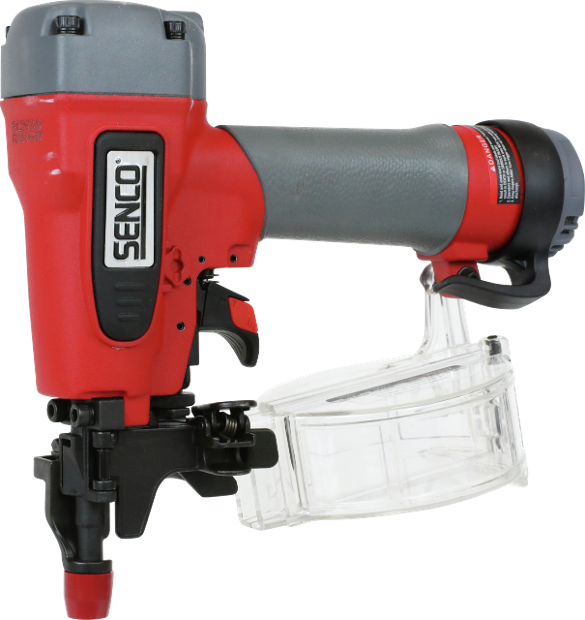

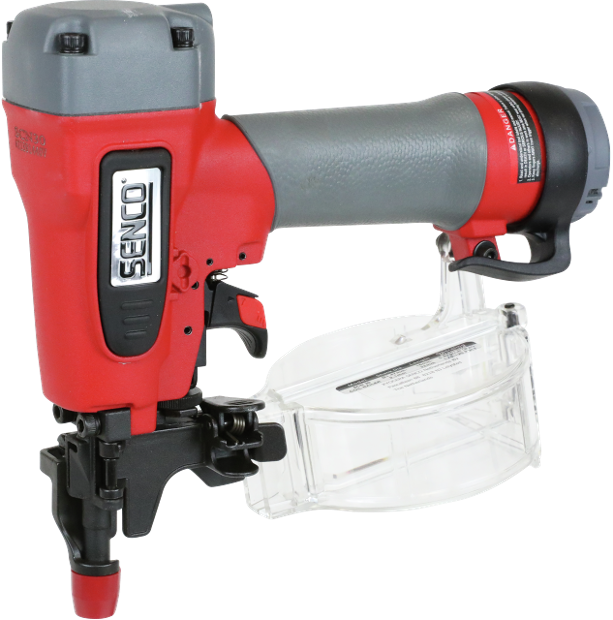

SCN30, coilnailer, dual

tap image to zoom

Description

The SCN30 coilnailer is an ultralight tool weighing only 1,1 kg. The adjustable rear end exhaust with in-built muffler prevents damage caused by exhausted air to the work surface.

Read more Read less

Applications

Furnitures, Gardening

Read more Read less

Request information

Specifications

Identifiers

Serie: Pro
Article number: SCN30
GTIN: 8715274029818
Type: SCN30

Technical specifications

Collation angle: 0 °
Wounding type: Flat
Oil free: no
Operating temperature: -18 - 49 °C
Collation type: Plastic collated 9mm
Firing mode: Selectable
Magazine capacity: 188
Shots / second: 4
Air inlet size: 3/8" female
Air consumption at 60 shots/minute: 42.8 l/m
Operating pressure: 4.8 - 8.3 bar
Sound pressure level: 79.1 Lpa
Sound power level: 92.1 Lwa
Vibration level: 1.89 m/s2

Fastener specifications

Type of nail: Coilnails
Smooth shank type: Smooth shank
Smooth shank nail length: 16 - 32 mm
Smooth shank nail diameter: 1.6 - 2.1 mm
Ring shank type: Ring shank
Ring shank nail length: 16 - 32 mm
Ring shank nail diameter: 1.6 - 1.6 mm
Pitch min: 6.0 mm
Pitch max: 6.0 mm

Non-technical specifications

Warranty: 1 year
Dimensions (DxWxH): 98 x 211 x 256 mm
Includes case: no

Logistical specifications

Net weight: 1.1 kg

Downloads

Manual SENCO Coilnailers PDF 21 Mb
Part chart SENCO coilnailer SCN30 PDF 1 Mb
SCN30_en_CommercialProductSheet_1.4_1752318574077 PDF 2 Mb
