PAL83, pallet coilnailer, dual

tap image to zoom

Description

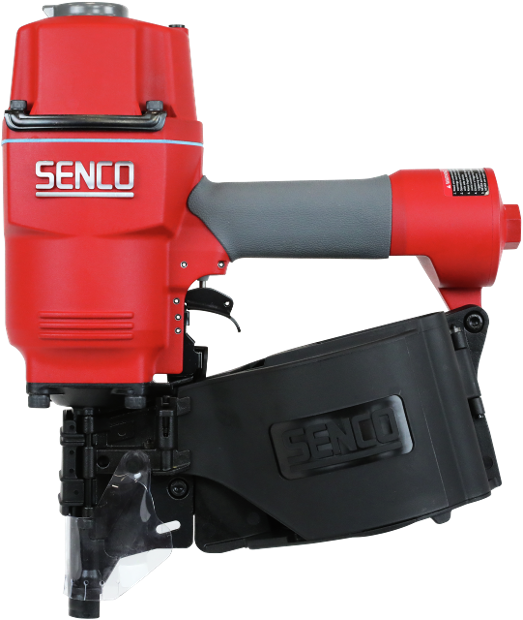

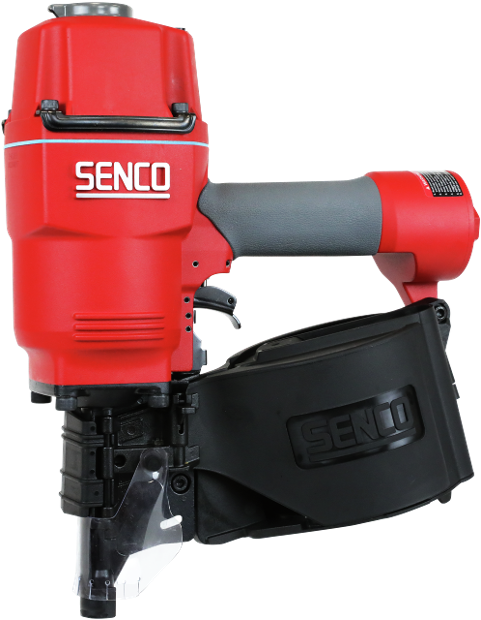

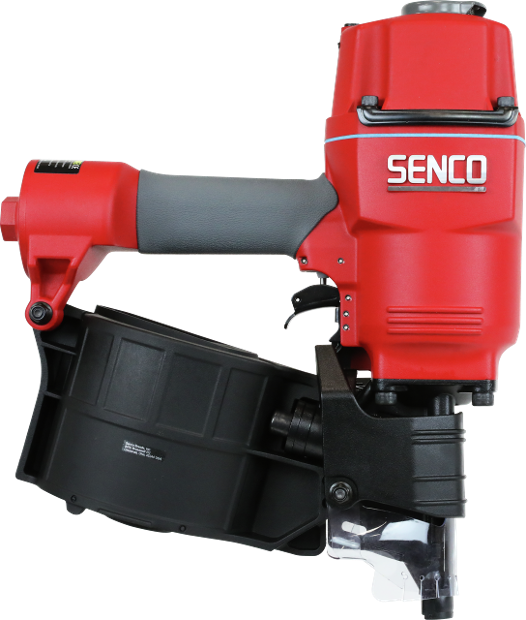

The Pal83 Heavy Duty coilnailer is designed and built for your toughest applications. Drives smooth, screw and ring coil nails.

Read more Read less

Applications

Pallets and crates, Packaging, Subfloor, Framing, Sheathing

Read more Read less

Request information

Specifications

Identifiers

Serie: PalletPro
Article number: PAL83
GTIN: 8715274017532
Type: PAL83

Technical specifications

Collation angle: 16 °
Wounding type: Flat
Oil free: no
Operating temperature: -18 - 49 °C
Collation type: Wire collated
Firing mode: Dual
Magazine capacity: 300
Shots / second: 3
Air inlet size: 3/8" female
Air consumption at 60 shots/minute: 164.0 l/m
Operating pressure: 4.8 - 8.3 bar
Sound pressure level: 90.5 Lpa
Sound power level: 102.4 Lwa
Vibration level: 5.39 m/s2

Fastener specifications

Type of nail: Coilnails
Smooth shank type: Smooth shank
Smooth shank nail length: 38 - 83 mm
Smooth shank nail diameter: 2.3 - 3.8 mm
Ring shank type: Ring shank
Ring shank nail length: 38 - 75 mm
Ring shank nail diameter: 2.3 - 2.3 mm
Screw shank type: Screw shank
Screw shank nail length: 38 - 80 mm
Screw shank nail diameter: 2.3 - 3.1 mm
Pitch min: 8.0 mm
Pitch max: 8.0 mm
Max outerdiamer coil: 121 mm

Non-technical specifications

Warranty: 1 year
Dimensions (DxWxH): 132 x 341 x 365 mm
Includes case: no

Logistical specifications

Net weight: 3.8 kg

Downloads

Manual SENCO Coilnailers PDF 21 Mb
Part chart SENCO coilnailer PAL83 PDF 2 Mb
PAL83_en_CommercialProductSheet_1.2_1748453207099 PDF 2 Mb
