SCN650, coilnailer, dual

tap image to zoom

Description

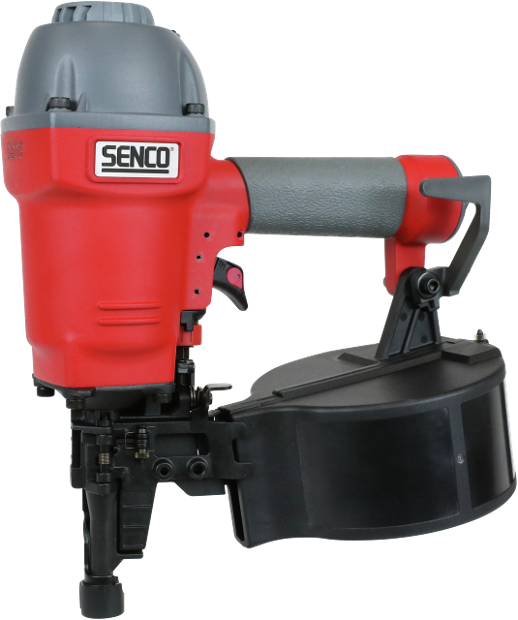

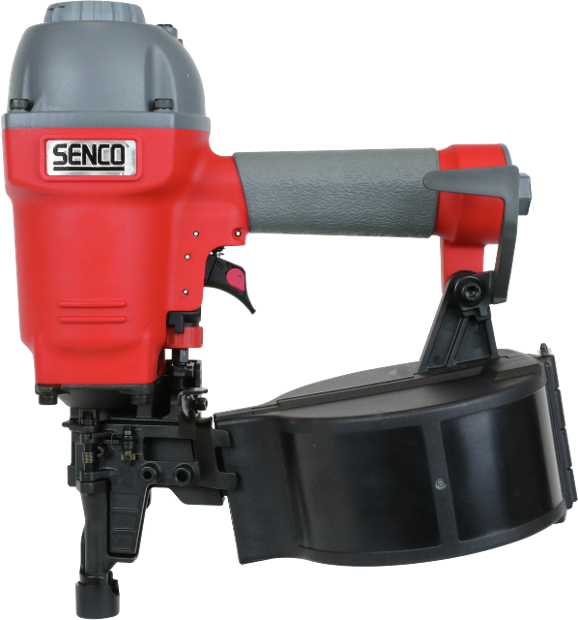

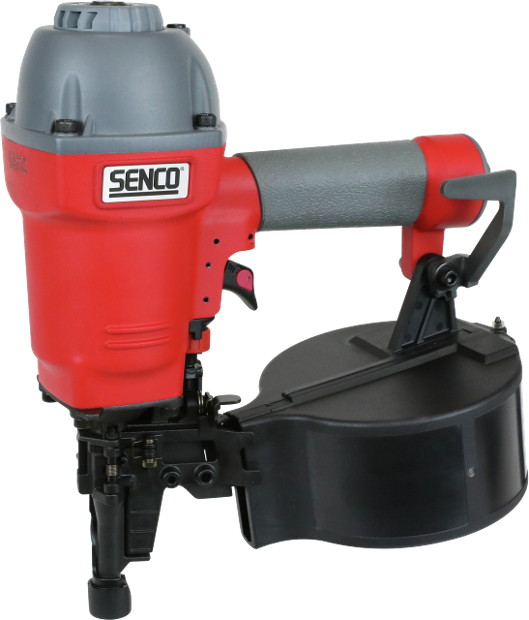

The SCN650 coilnailer is a 65mm 0 degree coilnailer, This new lightweight coilnailer is especially designed for those customers now using plastic collated 0 degree coilnails like Duofast and want to have a Senco quality tool for the job.

Read more Read less

Applications

Sheathing, Siding, Packaging, Fencing, Subfloor, Boards

Read more Read less

Request information

Specifications

Identifiers

Serie: XtremePro
Article number: 7P2001N
GTIN: 8715274046501
Type: SCN650

Technical specifications

Collation angle: 0 °
Wounding type: Flat
Oil free: no
Operating temperature: -18 - 49 °C
Collation type: Plastic collated 16mm
Firing mode: Selectable
Magazine capacity: 300
Air inlet size: 3/8" female
Air consumption at 60 shots/minute: 106.0 l/m
Operating pressure: 4.8 - 8.3 bar
Sound pressure level: 85.3 Lpa
Sound power level: 98.3 Lwa
Vibration level: 2.99 m/s2

Fastener specifications

Type of nail: Coilnails
Smooth shank type: Smooth shank
Smooth shank nail length: 32 - 65 mm
Smooth shank nail diameter: 2.03 - 2.87 mm
Ring shank type: Ring shank
Ring shank nail length: 32 - 65 mm
Ring shank nail diameter: 2.03 - 2.03 mm
Screw shank type: Screw shank
Screw shank nail length: 32 - 65 mm
Screw shank nail diameter: 2.03 - 2.87 mm
Pitch min: 6.3 mm
Pitch max: 6.3 mm

Non-technical specifications

Warranty: 1 year
Dimensions (DxWxH): 145 x 316 x 300 mm
Includes case: no

Logistical specifications

Net weight: 2.3 kg

Downloads

Manual SENCO Coilnailers PDF 21 Mb
Part chart SENCO coilnailer SCN650 PDF 4 Mb
7P2001N_en_CommercialProductSheet_1.1_1749832986466 PDF 2 Mb
