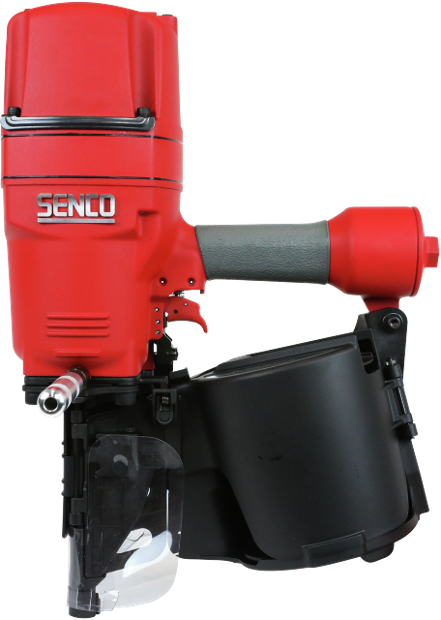

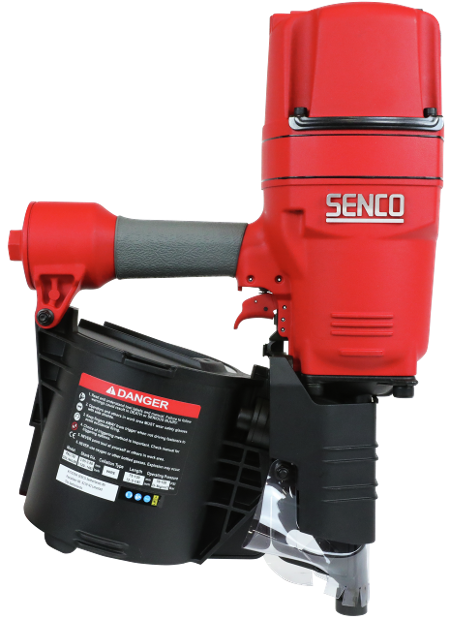

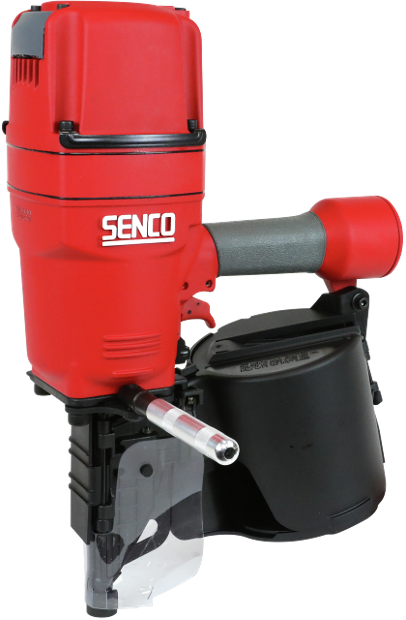

PAL130, pallet coilnailer, dual

tap image to zoom

Description

The Pal130 coilnailer has the muscle and durability to consistently and reliably drive up to 3,8x130mm nails all day long. The included T-handle helps comfortably maneuver and

Read more Read less

Applications

Pallets and crates, Packaging

Read more Read less

Request information

Specifications

Identifiers

Serie: PalletPro
Article number: 5M2001N
GTIN: 0741474062704
Type: PAL130

Technical specifications

Collation angle: 16 °
Wounding type: Flat
Oil free: no
Operating temperature: -18 - 49 °C
Collation type: Wire collated
Firing mode: Dual
Magazine capacity: 225
Air inlet size: 3/8" female
Air consumption at 60 shots/minute: 323.0 l/m
Operating pressure: 4.8 - 8.3 bar
Sound pressure level: 92.3 Lpa
Sound power level: 105.3 Lwa
Vibration level: 5.44 m/s2

Fastener specifications

Type of nail: Coilnails
Smooth shank type: Smooth shank
Smooth shank nail length: 75 - 130 mm
Smooth shank nail diameter: 3.1 - 3.8 mm
Pitch min: 10.5 mm
Pitch max: 10.5 mm
Max outerdiamer coil: 125 mm

Non-technical specifications

Warranty: 1 year
Dimensions (DxWxH): 154 x 479 x 338 mm
Includes case: no

Logistical specifications

Net weight: 5.8 kg

Downloads

Manual SENCO Coilnailers PDF 21 Mb
Part chart SENCO Pal130XP PDF 3 Mb
5M2001N_en_CommercialProductSheet_1.6_1752238005862 PDF 2 Mb
