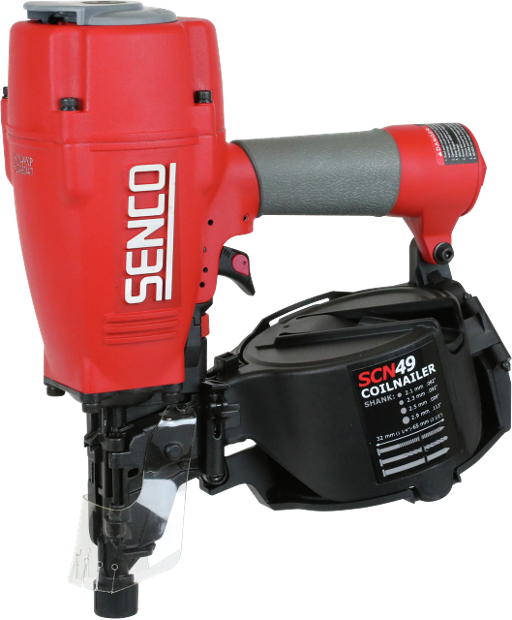

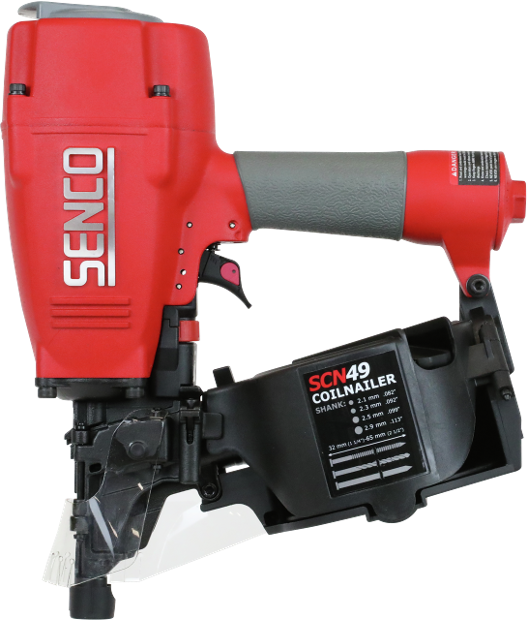

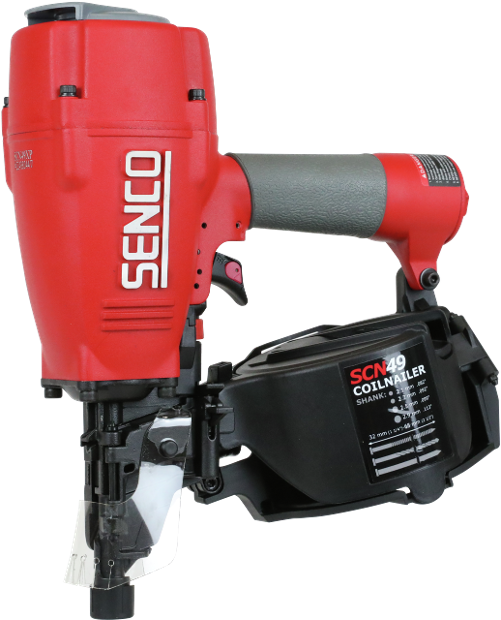

SCN49XP, coilnailer, dual

tap image to zoom

Description

The well-balanced and powerful SCN49XP coilnailer is your powered fastening solution for the installation of siding, including fiber cement products from Hardi™ and Certainteed™. This tools drives smooth, ring, and screw shank coil nails in both wire and plastic sheet collation. All-day durability and dependability are designed in. And with convenience and performance features like a selectable trigger, clear magazine door, and precise depth of drive control, the SCN49XP will help you achieve the professional results your customers demand.

Applications

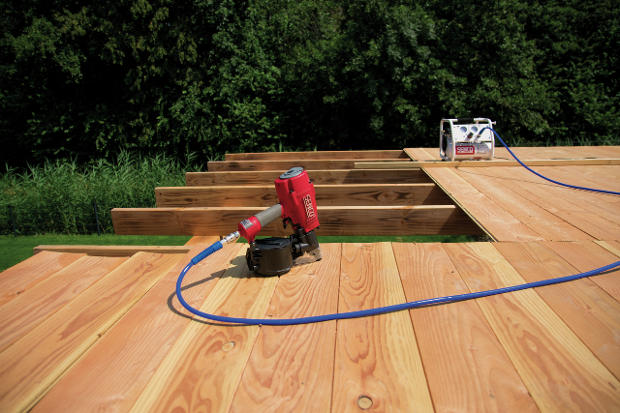

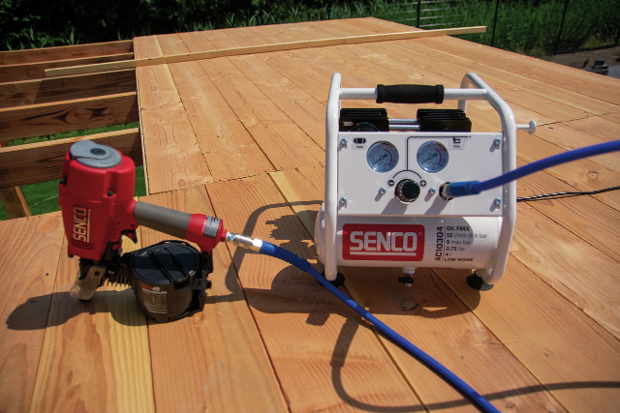

Decking, Sheathing, Siding, Subfloor, Wood shingles, Box assembly, Crates

Request information Request information

Specifications

Identifiers

Serie
XtremePro
Article number
5J2001N
GTIN
0741474111365
Type
SCN49XP

Technical specifications

Collation angle
16 °
Wounding type
Flat
Oil free
no
Operating temperature
-18 - 49 °C
Collation type
Wire collated
Alternative collation type
Plastic collated 16mm
Firing mode
Selectable
Magazine capacity
375
Shots / second
3
Air inlet size
3/8" female
Air consumption at 60 shots/minute
111.0 l/m
Operating pressure
5 - 8.3 bar
Sound pressure level
86.0 Lpa
Sound power level
96.0 Lwa
Vibration level
3.09 m/s2

Fastener specifications

Type of nail
Coilnails
Smooth shank type
Smooth shank
Smooth shank nail length
32 - 65 mm
Smooth shank nail diameter
2.1 - 2.87 mm
Ring shank type
Ring shank
Ring shank nail length
32 - 65 mm
Ring shank nail diameter
2.1 - 2.5 mm
Screw shank type
Screw shank
Screw shank nail length
32 - 65 mm
Screw shank nail diameter
2.5 - 2.5 mm
Pitch min
8.5 mm
Pitch max
8.5 mm
Max outerdiamer coil
120 mm

Non-technical specifications

Warranty
5 years
Dimensions (DxWxH)
132 x 314 x 304 mm
Includes case
no

Logistical specifications

Net weight
2.31 kg
