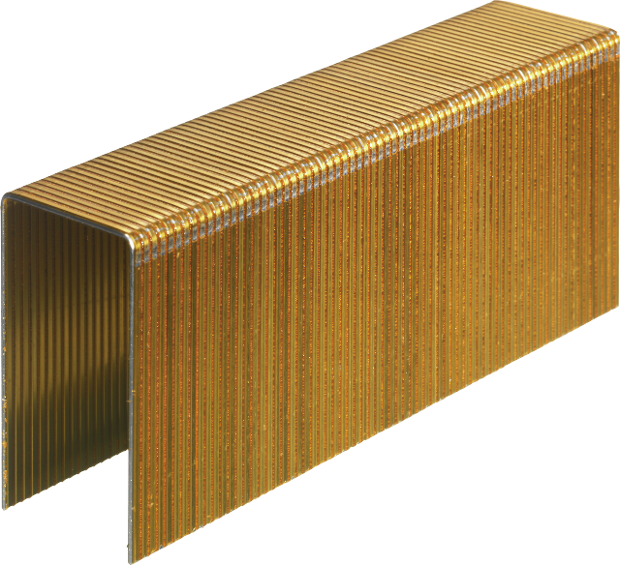

P staple 38mm

tap image to zoom

Description

P staple AISI304, Sencoted

Read more Read less

Applications

Sheathing, Roofing, Corrugated box fastening, Insulation boards, Furnitures, Cabinets, Framing, Butt joints

Read more Read less

Norm

Harmonized standard EN 14592:2008+A1:2012

Request information

Specifications

Identifiers

Article number: P17BGB
GTIN: 8715274289922

Technical specifications

Collation angle: 0 °
Collation type: Glue collated
Wire material: Stainless steel AISI 304 (A2)
Gauge: 16

Fastener specifications

Coating: Sencoted
Application environment: Outdoor
Point type: Chisel
Pointangle: 70 °
Staple type: Heavy wire staple
Staple thickness: 1.4 mm
Staple wire size: 1.51 mm
Staple crown width: 26.3 mm
Staple inside width: 23.42 mm
Staple serie: P staple
Amount fasteners on strip/coil: 69 - 71
Staple length: 38.0 mm

CeSpecifications

Characteristic head pull through parameter: 38.43 N/mm²
DOP No: P17BGB
Characteristic yield moment: 590.0 Nmm
Characteristic tensile strength: 800.0 N/mm²
Harmonized standard: EN 14592:2008+A1:2012
Characteristic withdrawal parameter: 4.5 N/mm²

Non-technical specifications

Package quantity: 5000

Downloads

P17BGB_en_CommercialProductSheet_1.7_1752316795012 PDF 1 Mb
P17BGB_en_DeclarationOfPerformanceDoP_1.0eu_1748306948121 PDF 61 Kb
