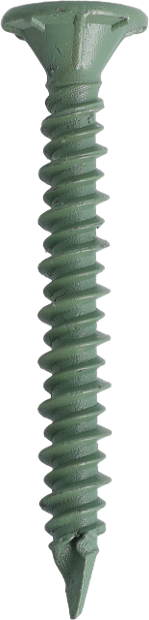

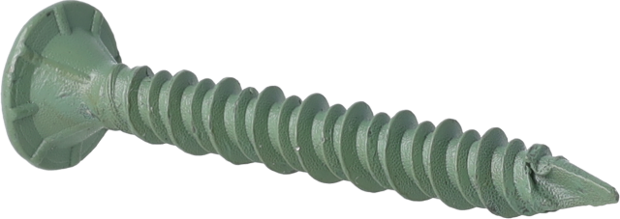

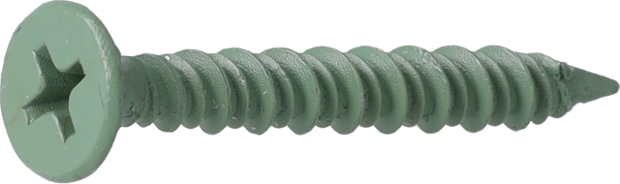

Flooring/decking wood to wood screw PH2 weatherex 4,5x38mm

tap image to zoom

Description

Flooring/decking wood to wood screw, weatherex II, philips

Read more Read less

Applications

Exterior gypsum fiber board to wood or light steel

Read more Read less

Norm

Harmonized standard EN 14566:2008+A1:2009

Request information

Specifications

Identifiers

Article number: 45US38MW
GTIN: 8718035002235

Technical specifications

Collation type: Plastic collated
Wire material: Carbon steel standard tensile
Rotations per minute: 2500, 3000, 3300 RPM

Fastener specifications

Finish: Weatherex II
Application environment: Outdoor
Point type: Spoon point
Pointangle: 30 °
Screw head type: Small with 4 nibs
Screw recess: Philips 2
Screw thread type: Hi-Lo
Amount fasteners on strip/coil: 50 - 50
Screw length: 38.0 mm
Screw diameter: 4.5 mm

CeSpecifications

DOP No: 45US38MW
Material notification on CE label: Non-alloy steel
Service class: 3
Inner threaded diameter: 3.3 mm
Threaded/profiled length: 30.0 mm
Harmonized standard: EN 14566:2008+A1:2009

Non-technical specifications

Package quantity: 1000

Downloads

45US38MW_en_CommercialProductSheet_1.4_1757441126349 PDF 1 Mb
45US38MW_en_DeclarationOfPerformanceDoP_1.1eu_1757441187952 PDF 59 Kb
