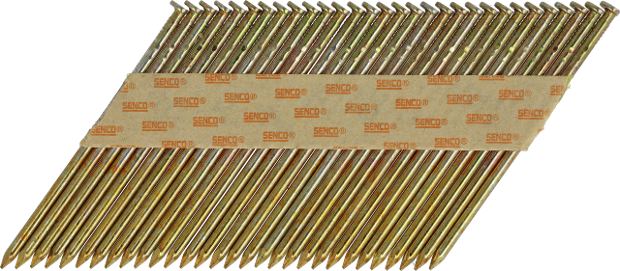

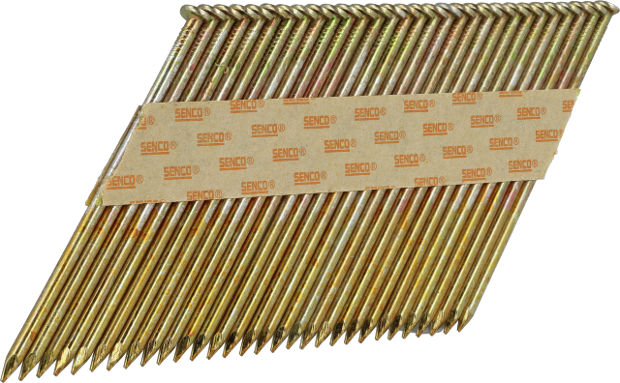

HC smooth stripnail 3,1x90mm

Specifications

Identifiers

Article number

HC59AAB

GTIN

4032933207320

Technical specifications

Collation angle

34 °

Collation type

Paper collated

Wire material

Carbon steel standard tensile

Fastener specifications

Finish

Regular galvanised

Coating

Sencoted

Application environment

Indoor

Type of nail

CH stripnails

Nail head type

Clipped head

Nail shank type

Smooth shank

Point type

Diamond

Pointangle

40 °

Nail diameter

3.1 mm

Amount fasteners on strip/coil

59 - 61

Nail length

90.0 mm

CeSpecifications

Characteristic head pull through parameter

30.1 N/mm²

CE fastener type

Round cross-section plain shank nail

DOP No

HC59AAB

Protection level in micron

≤5

Service class

1

Coating type

Coating type 3

Coating length

60.0 mm

Head cross sectional area

30.0 mm

Characteristic yield moment

2570.0 Nmm

Characteristic tensile strength

633.0 N/mm²

Harmonized standard

EN 14592:2008+A1:2012

Characteristic withdrawal parameter

3.1 N/mm²

Non-technical specifications

Package quantity

3000

Logistical specifications

Net weight

15.56 kg
