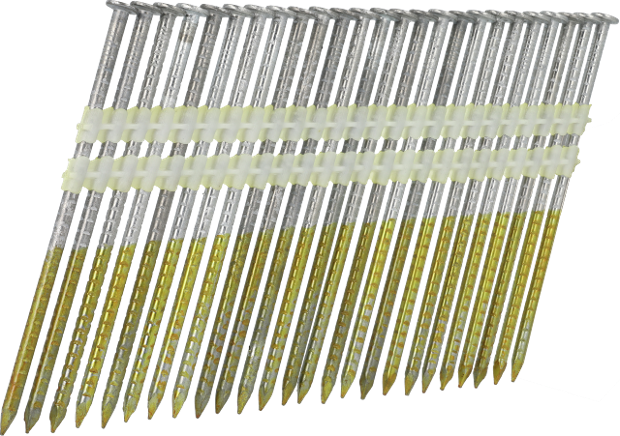

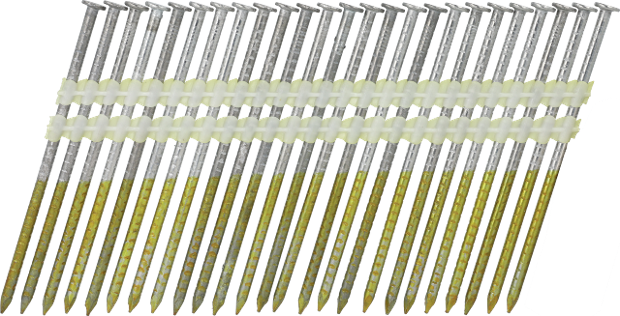

HB barbed stripnail 3,1x90mm
tap image to zoom
Description
3,1mm barbed stripnail, HDG, Sencoted
Applications
Framing, Sheathing, Subfloor, Decking, Trusses, Pallets and crates
Norm
- Harmonized standard EN 14592:2008+A1:2012
Specifications
Identifiers
- Article number
- HB59ASB4W
- GTIN
- 8715274037431
Technical specifications
- Collation angle
- 17 °
- Collation type
- Plastic collated
- Wire material
- Carbon steel standard tensile
Fastener specifications
- Finish
- Hot-Dipped galvanised 3
- Coating
- Sencoted
- Application environment
- Outdoor
- Type of nail
- FRH stripnails
- Nail head type
- Full round head
- Nail shank type
- Barbed shank
- Point type
- Diamond
- Pointangle
- 40 °
- Nail diameter
- 3.1 mm
- Amount fasteners on strip/coil
- 28 - 28
- Nail length
- 90.0 mm
CeSpecifications
- Characteristic head pull through parameter
- 20.3 N/mm²
- DOP No
- HB59ASB4W
- Protection level in micron
- 55
- Service class
- 3
- Coating type
- Coating type 3
- Coating length
- 61.5 mm
- Head cross sectional area
- 37.0 mm
- Threaded/profiled length
- 63.0 mm
- Characteristic yield moment
- 3193.0 Nmm
- Characteristic tensile strength
- 695.0 N/mm²
- Harmonized standard
- EN 14592:2008+A1:2012
- Characteristic withdrawal parameter
- 3.4 N/mm²
Non-technical specifications
- Package quantity
- 500
Logistical specifications
- Net weight
- 2.84 kg
