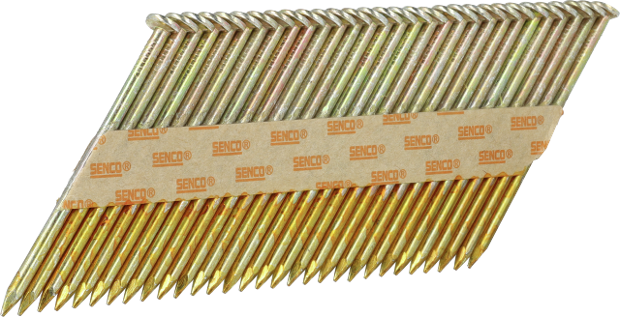

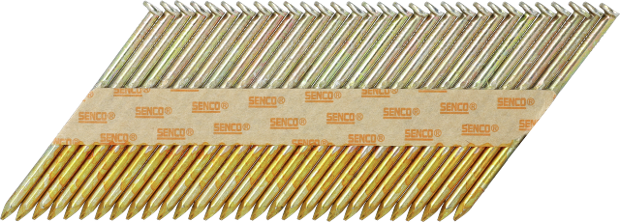

GC smooth stripnail 2,87x60mm

Specifications

Identifiers

Article number

GC54AXBKR

GTIN

8715274302232

Technical specifications

Collation angle

34 °

Collation type

Paper collated

Wire material

Carbon steel standard tensile

Fastener specifications

Finish

Zinc plated 12 micron

Coating

Sencoted

Application environment

Half indoor

Type of nail

CH stripnails

Nail head type

Clipped head

Nail shank type

Smooth shank

Point type

Diamond

Pointangle

40 °

Nail diameter

2.87 mm

Amount fasteners on strip/coil

59 - 61

Nail length

60.0 mm

CeSpecifications

Characteristic head pull through parameter

27.12 N/mm²

CE fastener type

Round cross-section plain shank nail

DOP No

GC54AXBKR

Protection level in micron

55

Service class

3

Coating type

Coating type 3

Coating length

36.0 mm

Head cross sectional area

30.0 mm

Characteristic yield moment

3054.0 Nmm

Characteristic tensile strength

695.0 N/mm²

Harmonized standard

EN 14592:2008+A1:2012

Characteristic withdrawal parameter

2.45 N/mm²

Non-technical specifications

Package quantity

2000

Logistical specifications

Net weight

6.65 kg
