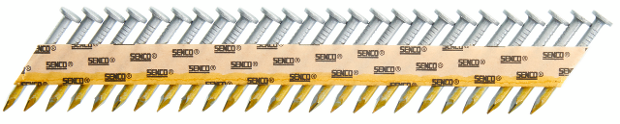

NP metalconnector ring 4,0x60mm
tap image to zoom
Description
4,0mm ring metal connector, 12 micron galvanized, Sencoted
Applications
Joist hangers, Anchors, Straps
Norm
- Harmonized standard EN 14592:2008+A1:2012
Specifications
Identifiers
- Article number
- NP54AXBDR
- GTIN
- 8715274184395
Technical specifications
- Collation angle
- 34 °
- Collation type
- Paper collated
- Wire material
- Carbon steel standard tensile
Fastener specifications
- Finish
- Zinc plated 12 micron
- Coating
- Sencoted
- Application environment
- Half indoor
- Type of nail
- Metal connector stripnails
- Nail head type
- Full round head
- Nail shank type
- Ring shank
- Point type
- Diamond
- Pointangle
- 36 °
- Nail diameter
- 4.0 mm
- Amount fasteners on strip/coil
- 30 - 30
- Nail length
- 60.0 mm
CeSpecifications
- DOP No
- NP54AXBDR
- Service class
- 2
- Coating type
- Coating type 3
- Head cross sectional area
- 50.0 mm
- Threaded/profiled length
- 53.0 mm
- Characteristic yield moment
- 6850.0 Nmm
- Characteristic tensile strength
- 668.0 N/mm²
- Harmonized standard
- EN 14592:2008+A1:2012
- Characteristic withdrawal parameter
- 6.99 N/mm²
Non-technical specifications
- Package quantity
- 1000
