GT60i-NN Metal connector nailer
- Article number
- 14VS2001N
- Ring shank nail length
- 38 - 64 mm
- Ring shank nail diameter
- 3.3 - 4.3 mm
- Collation angle
- 34 °
- Serie
- Gas Technology

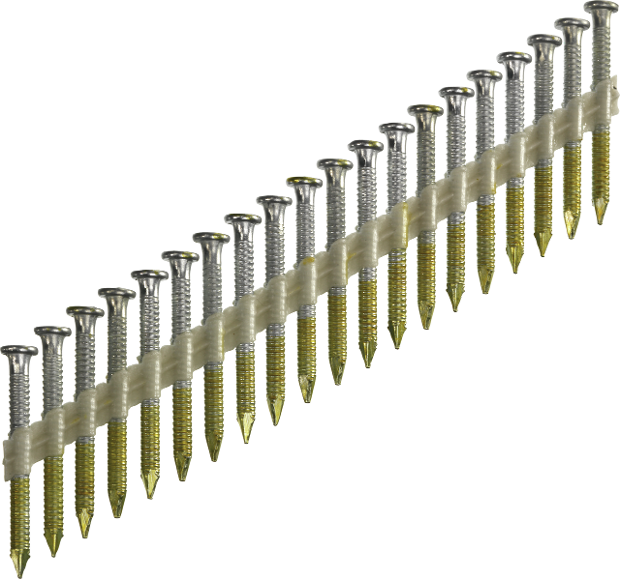

MN metalconnector ring 3,8x38mm
tap image to zoom
Description
3,8mm ring metal connector, galvanized, Sencoted
Applications
Joist hangers, Anchors, Straps
Norm
- Harmonized standard EN 14592:2008+A1:2012
Specifications
Identifiers
- Article number
- MN17AABMR
- GTIN
- 8715274041742
Technical specifications
- Collation angle
- 34 °
- Collation type
- Plastic collated
- Wire material
- Carbon steel standard tensile
Fastener specifications
- Finish
- Regular galvanised
- Coating
- Sencoted
- Application environment
- Indoor
- Type of nail
- Metal connector stripnails
- Nail head type
- Full round head
- Nail shank type
- Ring shank
- Point type
- Diamond
- Pointangle
- 38 °
- Nail diameter
- 3.8 mm
- Amount fasteners on strip/coil
- 30 - 30
- Nail length
- 38.0 mm
CeSpecifications
- DOP No
- MN17AABMR
- Protection level in micron
- ≤5
- Service class
- 1
- Coating type
- Coating type 3
- Head cross sectional area
- 50.0 mm
- Threaded/profiled length
- 31.0 mm
- Characteristic yield moment
- 6850.0 Nmm
- Characteristic tensile strength
- 668.0 N/mm²
- Harmonized standard
- EN 14592:2008+A1:2012
- Characteristic withdrawal parameter
- 6.99 N/mm²
Non-technical specifications
- Package quantity
- 1000
Logistical specifications
- Net weight
- 3.6 kg
