PAL100 Pallet coilnailer
- Article number
- PAL100
- Smooth shank nail length
- 55 - 100 mm
- Smooth shank nail diameter
- 2.5 - 3.8 mm
- Collation angle
- 16 °
- Collation type
- Wire collated
- Serie
- PalletPro

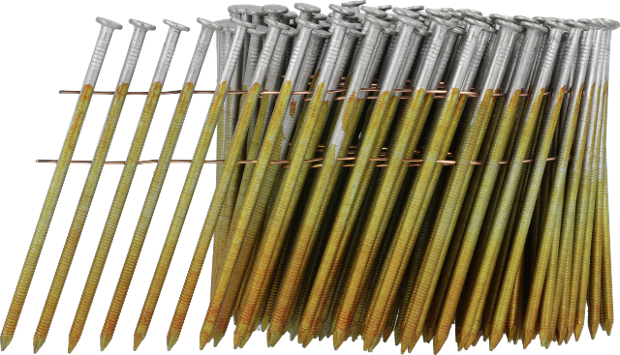

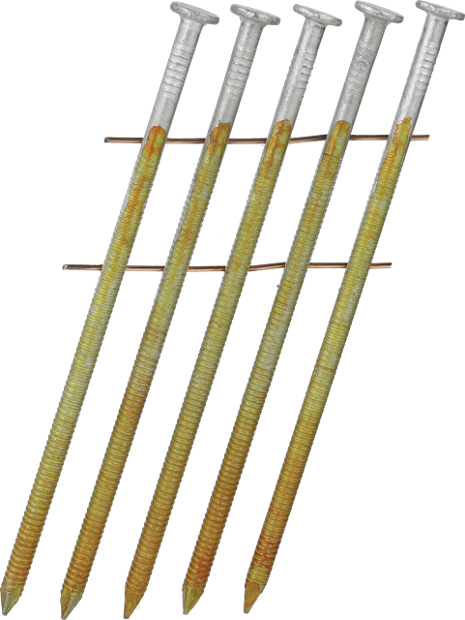

Senco cn flat hdg dp ring senc. 3,1x90mm
tap image to zoom
Description
3,1mm flat ring coilnail, HDG, Sencoted, Retail
Applications
Framing, Sheathing, Decking, Trusses
Norm
- Harmonized standard EN 14592:2008+A1:2012
Specifications
Identifiers
- Article number
- HL29ASBFR
- GTIN
- 8715274029009
Technical specifications
- Collation angle
- 16 °
- Wounding type
- Flat
- Collation type
- Wire collated
- Wire material
- Carbon steel standard tensile
Fastener specifications
- Finish
- Hot-Dipped galvanised 3
- Coating
- Sencoted
- Application environment
- Outdoor
- Type of nail
- Coilnails
- Nail shank type
- Ring shank
- Point type
- Diamond
- Pointangle
- 40 °
- Pitch min
- 8.4 mm
- Pitch max
- 8.4 mm
- Max outerdiamer coil
- 122 mm
- Nail diameter
- 3.1 mm
- Amount fasteners on strip/coil
- 200 - 200
- Nail length
- 90.0 mm
CeSpecifications
- Characteristic head pull through parameter
- 25.5 N/mm²
- CE fastener type
- Round cross-section ring shank nail
- DOP No
- HL29ASBFR
- Protection level in micron
- 55
- Service class
- 3
- Coating type
- Coating type 3
- Coating length
- 61.5 mm
- Head cross sectional area
- 37.0 mm
- Threaded/profiled length
- 62.0 mm
- Characteristic yield moment
- 2640.0 Nmm
- Characteristic tensile strength
- 620.0 N/mm²
- Harmonized standard
- EN 14592:2008+A1:2012
- Characteristic withdrawal parameter
- 3.9 N/mm²
Non-technical specifications
- Package quantity
- 900
Logistical specifications
- Net weight
- 4.91 kg
