PAL70 Pallet coilnailer
- Article number
- PAL70
- Smooth shank nail length
- 45 - 70 mm
- Smooth shank nail diameter
- 2.3 - 2.87 mm
- Collation angle
- 16 °
- Collation type
- Wire collated
- Serie
- PalletPro

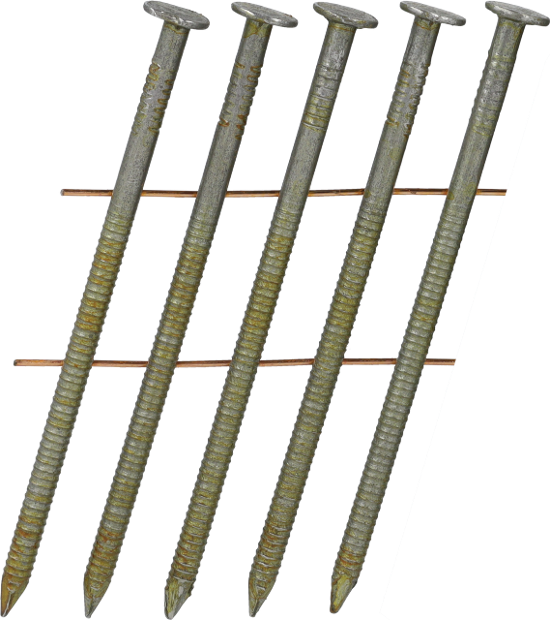

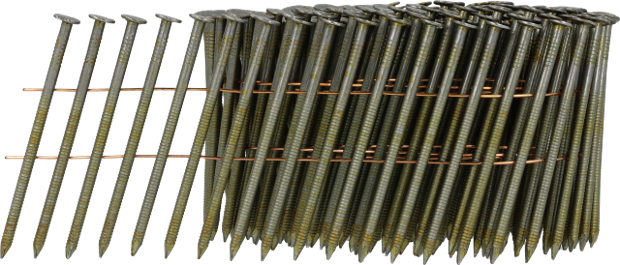

Senco cn flat EPAL bb dp. ring 2,87x40mm
tap image to zoom
Description
2,87mm flat ring coilnail, bright basic, Sencoted, EPAL
Applications
Pallets
Norm
- Harmonized standard EN 14592:2008+A1:2012
Specifications
Identifiers
- Article number
- GL18APBF-EPALSW
- GTIN
- 8715274183978
Technical specifications
- Collation angle
- 16 °
- Wounding type
- Flat
- Collation type
- Wire collated
- Wire material
- Carbon steel standard tensile
Fastener specifications
- Finish
- Bright basic standard tensile
- Coating
- Sencoted
- Application environment
- Indoor
- Type of nail
- Coilnails
- Nail shank type
- Ring shank
- Point type
- Diamond
- Pointangle
- 40 °
- Pitch min
- 8.4 mm
- Pitch max
- 8.4 mm
- Max outerdiamer coil
- 122 mm
- Nail diameter
- 2.87 mm
- Amount fasteners on strip/coil
- 250 - 250
- Nail length
- 40.0 mm
CeSpecifications
- Characteristic head pull through parameter
- 27.12 N/mm²
- CE fastener type
- Round cross-section ring shank nail
- DOP No
- GL18APBF-EPALSW
- Service class
- 1
- Coating type
- Coating type 3
- Head cross sectional area
- 36.0 mm
- Characteristic yield moment
- 3054.0 Nmm
- Characteristic tensile strength
- 695.0 N/mm²
- Harmonized standard
- EN 14592:2008+A1:2012
- Characteristic withdrawal parameter
- 8.5 N/mm²
Non-technical specifications
- Package quantity
- 10500
Logistical specifications
- Net weight
- 21.3 kg
