SCN75 Coilnailer
- Article number
- SCN75
- Smooth shank nail length
- 45 - 75 mm
- Smooth shank nail diameter
- 2.5 - 3.3 mm
- Collation angle
- 16 °
- Collation type
- Wire collated
- Serie
- Pro

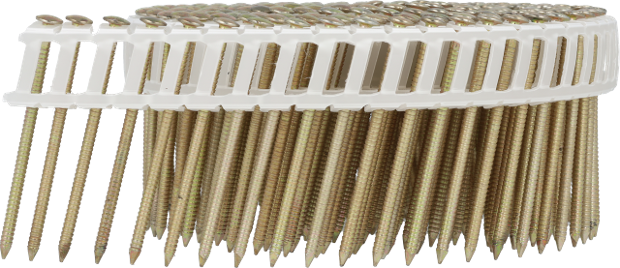

Senco cn fl galv dp ring senc pc. 2,5x55
tap image to zoom
Description
2,5mm flat ring coilnail, galvanized, Sencoted
Applications
Framing, Subfloor, Trusses, Pallets and crates
Norm
- Harmonized standard EN 14592:2008+A1:2012
Specifications
Identifiers
- Article number
- BS22AABC
- GTIN
- 8715274044903
Technical specifications
- Collation angle
- 16 °
- Wounding type
- Flat
- Collation type
- Plastic collated 16mm
- Wire material
- Carbon steel standard tensile
Fastener specifications
- Finish
- Regular galvanised
- Coating
- Sencoted
- Application environment
- Indoor
- Type of nail
- Coilnails
- Nail shank type
- Ring shank
- Point type
- Diamond
- Pointangle
- 40 °
- Nail diameter
- 2.5 mm
- Amount fasteners on strip/coil
- 200 - 200
- Nail length
- 55.0 mm
CeSpecifications
- Characteristic head pull through parameter
- 25.5 N/mm²
- CE fastener type
- Round cross-section ring shank nail
- DOP No
- BS22AABC
- Protection level in micron
- ≤5
- Service class
- 1
- Coating type
- Coating type 3
- Coating length
- 40.5 mm
- Head cross sectional area
- 37.0 mm
- Threaded/profiled length
- 45.0 mm
- Characteristic yield moment
- 1620.0 Nmm
- Characteristic tensile strength
- 700.0 N/mm²
- Harmonized standard
- EN 14592:2008+A1:2012
- Characteristic withdrawal parameter
- 3.1 N/mm²
Non-technical specifications
- Package quantity
- 7200
Logistical specifications
- Net weight
- 16.3 kg
